• TDD OFDM Mesh networking modulator module for video data Link
• RF Power: 24±1dBm* 2 channels
• Working Frequency: 566MHz~678HMz, 1420MHz~1530MHz
• With 3 Ethernet and 1 RS232 uart wireless data link, TTL control uart
• Transmission range 500~2000m (ground-to-ground), 5~22km (UAV to ground)
• Great transfer rate for uplink and downlink
• Support frequency hopping spread sprectrum technology (FHSS)

HCL6-M Mesh modulator module is designed for video data wireless transmission with two way wireless data link. This OFDM radio module works at 600MHz and 1.4GHz bands, with frequency hopping technology (FHSS) to ensure the secure and stability of signal transmission.

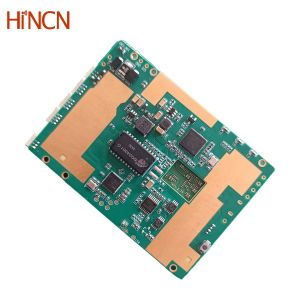

Front of the Mesh networking modulator module

The HCL6-M the Mesh modulator module has different versions with different distance level from 10km to 100km with different nodes and bitrates, we also provide 2W, 5W, 10W RF power amplifier to work with the module. We offer ODM services, please contact us to specify your requirements.
