HDMI Video Transmitter And Receiver COFDM Module For 4K Wireless Transmission

Ask Lasest Price
Brand Name :	Hincn
Model Number :	HC-T4K
Price :	US$798.00~US$929.00
Payment Terms :	,T/T,Western Union,MoneyGram,D/P,D/A,L/C
Supply Ability :	300 pcs/ month
Delivery Time :	7~14 working days

Add to Cart

Product Details
Company Profile

HDMI Video Transmitter And Receiver COFDM Module For 4K Wireless Transmission

HDMI Ethernet Input COFDM HD Transmitter Module For 4K Video Wireless Transmission

Key Features:

COFDM modulation.
Support HDMI input, capable of transmitting 4K (3840*2160@30) video
H265/H264 encoding with low latency.
Support input of IP camera video via network port.
Support analog audio or HDMI audio input.
Support one unidirectional data transmission serial port.
Web UI method or configuration through serial port for management.

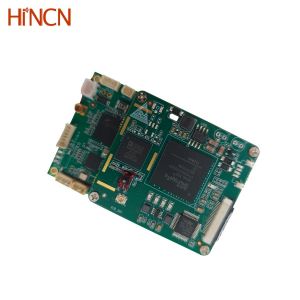

COFDM HD Transmitter Module Picture:

HDMI Video Transmitter And Receiver COFDM Module For 4K Wireless Transmission

The 4K COFDM HD Transmitter module consists of two modules: COFDM modulator and 4K video encoder. These two modules are connected via 26-pin FPC cable. The COFDM HD transmitter can achieve the highest 4K (3840*2160@30) video input with H265/H264 low-latency encoding.It also supports IP Camera video input and transmits after COFDM modulation.

The interface function description of the COFDM HD transmitter module as follows:

HDMI in	Standard Type A HDMI connector, capable of supporting up to 4K (3840*2160@30) video input with H265/H264 low-latency encoding.
Ethernet	4 pin PH1.25mm connector,support simultaneous connection of IP camera and HDMI input video for COFDM modulation and transmission together. The parameters of the module can also be configured via the Ethernet port connection to the computer by Web UI.The default IP address is 192.168.0.215.
Data Uart	3PIN PH1.25mm connector,bidirectional transparent data uart,TTL 3.3V level, transmission baud rate and other parameters can be configured.
Control Uart	4PIN PH1.25mm connector, TTL 3.3V level, it can be connected to the host computer or our configuration control board for management of COFDM HD transmitter module.
Analog Audio in	3PIN PH1.25mm connector,capable of connecting analog audio input and video for simultaneous encoding and transmission. Default configuration is HDMI audio input, or it can be configured as HDMI input for video,and this audio input port for analog audio.The audio is encoded as AAC,16-bit, mono, 48 Kbps. Line in/Mic in can be configured via software.
Power in	2PIN PH2.0mm connector,supports reverse connection protection for power input, power input range is 7 to 30V. The maximum power consumption of the COFDM HD transmitter module is 5W. Maximum current is 400mA at 12V.
HDMI out	Standard Type A HDMI connector
USB	Software upgrade and maintenance use
Tx	IPEX connector, COFDM modulation RF output port

Technical Specifications:

HDMI Ethernet Input COFDM HD Transmitter Module For 4K Video Wireless Transmission
Model number	HC-T4K
Modulation	COFDM QPSK, 16QAM, 64QAM
Number of Subcarriers	2K
Wireless bandwidth	1MHz~8MHz adjustable,1KHz step forward
Frequency	160MHz~4GHz
FEC	1/2, 2/3, 3/4, 5/6, 7/8
Guard interval	1/32, 1/16, 1/8, 1/4
Output power	Configurable from -93dBm to -5dBm
Bitrate	0.5Mbps to 31.67Mbps
Encryption	AES256
Latency	H264 1080P low-latency mode: about 130ms H265 4K latency mode: about 350ms
Size	80*50mm(The dimensions not including the protruding part of the connector)
Weight	41g
Thickness	less than 15mm
