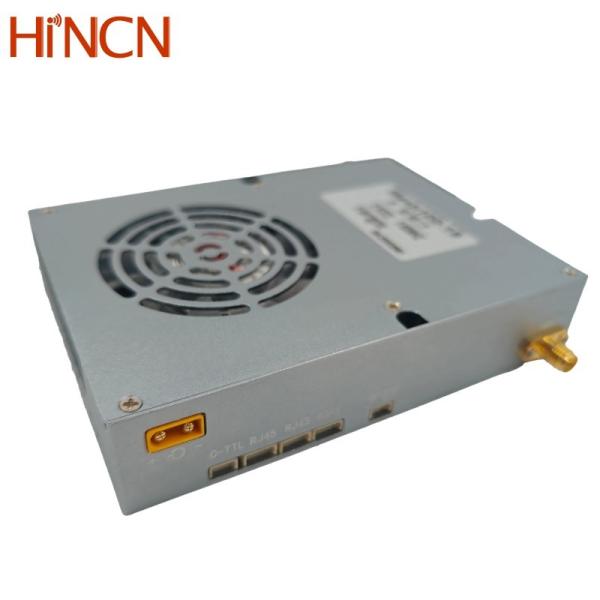

100km UAV Video Transmitter Wireless Networking Ethernet TDD FHSS Transceiver

Ask Lasest Price
Brand Name :	Hincn
Model Number :	HCL605- 5
Price :	US$2,255~US$2,555
Payment Terms :	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :	100,000pcs/month
Delivery Time :	7~14 working days

Add to Cart

Product Details
Company Profile

100km UAV Video Transmitter Wireless Networking Ethernet TDD FHSS Transceiver

TDD FHSS 100km UAV Video Transmitter Wireless Networking Ethernet Transceiver

Key Features:

TDD OFDM full duplex wireless transceiver for video data Link.
Up to 100Mbps Iperf Throughput.
Supports Mesh Networks.
Interface through web browser or control uart.
3 Ethernet and 1 channel RS232/TTL data link.
Long distance wireless video data transmission with 5W*2 RF power.

Overview:

Hincn HCL605 UAV video transmitter is specificallly designed to achieve long range wireless transmission of video data (two way data link). It operates in the 600MHz or 1.4GHz frequency bands, and employs frequency hopping spread spectrum technology (FHSS) to ensure better stability of signal communication.

Technical Specifications:

TDD FHSS 100km UAV Video Transmitter Wireless Networking Ethernet Transceiver
Modulation	TDD OFDM
Frequency	566~678MHz and 1420~1530MHz
Bandwidths	1.4/ 3/ 5/ 10/ 20/ 40MHz
Throughput	Maximum 100Mbps
RF transmission Power	5W *2( Each 5W of the 2 antennas)
Constellation	QPSK,16QAM,64QAM, self-adaption
Sensitivity	-102dBm(1Mbps at 20MHz)
IP data transmission(3 Ethernet port)	Support
Serial data transmission(1 channel RS232 or TTL)	Support
Transmission range	2~10km( ground to ground), maximum 100km( UAV to ground)
Management	Trough Web UI or Control uart
Encryption	AES128-bit encryption
Network mode	Mesh
Movement speed	Support maximum 300km/h
Power input	24~30V
Power consumption	<2A at 12V
Dimensions	113.983.723.3 mm
Weight	243g

100km UAV Video Transmitter Wireless Networking Ethernet TDD FHSS Transceiver

Input/ Output	Description
Ethernet	3 channel 4Pin PH1.25mm connector, bridged inside with same IP address
Data UART	RS232 data UART(RS232 as default, optional TTL before shipping out), 3PIN PH1.25mm connector
Control UART	TTL control UART, 3PIN PH1.25mm connector
Power in	XT30PW-M connector
ANT 1	Tx/Rx Antenna port, SMA female
ANT 2	Tx/Rx Antenna port, SMA female

Wireless networking with HCL605-5W UAV video transmitter:

Mesh transmitting

100km UAV Video Transmitter Wireless Networking Ethernet TDD FHSS Transceiver

This HCL605 5W UAV video transmitter supports mesh network with maximum 32 nodes and shared maximum 100Mbps Iperf Throughput. Here the version we recommended maximum support 4 nodes- 2 hops and shared 60Mbps. Price is much more competitive.

HCL605-5W UAV video transmitter Drawing

100km UAV Video Transmitter Wireless Networking Ethernet TDD FHSS Transceiver

FAQ

Q1. Does it support any other cameras except IP camera?

A: IP camera video can be connected with HCL605 directly via Ethernet port. HDMI/SDI/AHD/AV camera video can be encoded with our SE10/SE11 encoder and then work with HCL605 via Ethernet connection.
